Pipeline Products

Thirran Energy collaborates with reputable Principal to supply wide range of pipeline products such as pipeline pig tracking, locating and signaling quipment and advanced pipeline data logging and testing systems.

Our main objective is to provide operators & installation companies with the means to achieve significant cost savings by minimising vessel time offshore and minimising downtime onshore. Our innovative and flexible range utilises a variety of technologies to support customers through the different stages of a pipeline’s life from pre-commissioning to inspection, repair and maintenance and finally, decommissioning.

In addition to our core range of products, our Research & Development expertise enable us to undertake bespoke projects incorporating custom designs to suit client specific requirements.

Pig Tracting & Locating System

Pig Tracting & Locating System

Routine pigging can present several challenges and the risk of a pig becoming lost or stuck should always be considered. Until located, lost or stuck pigs can result in considerable down time and significant extra expense.

ELECTROMAGNETIC (EM) PIG LOCATING

The Electromagnetic transmitter and receiver systems enable quick and accurate locating and tracking of a stuck pipeline pig in a topside or subsea pipeline and with any pipeline medium.

ELECTROMAGNETIC TRANSMITTERS

Electromagnetic transmitters allow for precise validation of a stuck pig’s location and as a contingency method of confirming launch and receipt of pipeline pigs. Our Principal can provide a wide range of ATEX certified EM transmitters designed to work in potentially explosive environments such as FPSOs, platforms, refineries and other locations where equipment must be protected from creating ignition or explosion.

For more information about the series of EM transmitters (as below) please contact TEN sales representative;

• EMTx20 Series (inc ATEX)
• EMTx30 Series (inc ATEX)
• 3015 Series (inc ATEX)
• 3007 Series

ELECTROMAGNETIC RECEIVERS

Electromagnetic receiver systems allow for quick and exact tracking and locating of pigs fitted with electromagnetic transmitters. The location of a stuck pig can be identified with onshore, ATEX and subsea diver and ROV options.

ELECTROMAGNETIC RECEIVERS SYSTEMS

Electromagnetic receiver systems allow for quick and exact tracking and locating of pigs fitted with electromagnetic transmitters. The location of a stuck pig can be identified with onshore, ATEX and subsea diver and ROV options.

For more information about the series of EM Receiver Systems (as below) please contact TEN sales representative;

• Topside
• Topside ATEX
• Modular ROV
• Audio Software
• EMRx Multifrequency EM Receiver

Features and Benefits:

• Range of units suit all line sizes
• Specialist operators are not required resulting in less costs than other tracking & location options
• The transmitter can be adapted to become the pig body by fitting pig flanges
• USB and/or Bluetooth endcap allows the transmitter parameters such as pulse rate, pulse width and power output to be modified by the user without the need to return the unit to manufacturer
• Can be configured at site if required with dedicated software

Read More
Show Less

ELECTROMAGNETIC TRANSMITTERS

EMTx20 Series (inc ATEX)
EMTx30 Series (inc ATEX)
3015 Series (inc ATEX)
3007 Series

ELECTROMAGNETIC RECEIVERS SYSTEMS

Topside
Topside ATEX
Modular ROV
Audioscope
Multi-frequency EM Receiver

Acoustic Pig Locating

Our acoustic pinger and receiver systems enable quick and accurate detection of a stalled pipeline pig from either a support vessel or platform resulting in significant savings in vessel, equipment and personnel costs.

ACOUSTIC PIG LOCATING

If a pig is to be located in a subsea, liquid filled line over longer distances, The Acoustic pinger and receiver system enables quick and accurate detection from a support vessel, resulting in significant savings in vessel, equipment and personnel costs. The location of a stuck pig can be identified using diver and ROV held hydrophone solutions including the option to relay the received acoustic signal to the surface via the ROV’s umbilical.

SMART PINGERS

Series of acoustic pingers developed for use as pig pingers and for other subsea marking and locating functions.

For more information about the series of Smart Pingers (as below) please contact TEN sales representative;

• 600 Series
• 800 Series
• 1200 Series

Features and Benefits:

• Range of units suit all line sizes
• Specialist operators are not required resulting in less costs than other tracking & location options
• The Pig Locater can be adapted to become the pig body by fitting pig flanges
• Smart Pingers – Series of acoustic pingers developed for use as pig pingers and for other subsea marking and locating functions.
• Can be configured at site if required with dedicated software

PINGER RECEIVER SYSTEM

Acoustic receiver systems allowing for quick and accurate tracking and locating of pigs fitted with subsea acoustic pingers. The location of a stuck pig can be identified using diver and ROV held hydrophone solutions including the option to relay the received acoustic signal to the surface via the ROV’s umbilical.

For more information about the series of Pinger receiver System (as below) please contact TEN sales representative;

• Topside & hydrophone
• Modular ROV
• Self Container ROV Held
• Diver Held

Read More
Show Less

ACOUSTIC PIG LOCATING

600 Series
800 Series
1200 Series

PINGER RECEIVER SYSTEM

Topside & Standard Hydrophone
Modular ROV Receiver
Self Contained ROV Held Receiver
Diver Held Acoustic Receiver

Non-Intrusive Pig Signallers

The range of non-intrusive pig signallers accurately detect, signal and log the passage of pipeline pigs at critical points along pipelines onshore, offshore and subsea. All topside signallers are ATEX certified allowing for installation in hazardous Zone 1 areas such as on platforms and in refineries. All signallers provide a local indication of a pig passage via a graphical display and high brightness LEDS as well as a downloadable event log of up to 100 passages.

Unlike intrusive pig signallers, non-intrusive signallers can be installed quickly and easily to the pipeline. They can also be removed without difficulty if maintenance is required, eliminating the need to suspend production and avoiding significant costs as a result.

MAGNETIC

The magnetic pig detectors confirm passage of pigs carrying magnets, typically at launch and receipt, in onshore, topside and subsea pipelines.

The range of compact magnetic signallers detect magnetic pigs in any pipeline medium, removing any uncertainty over pig passage allowing operations to continue on schedule. Minimal set up is required ensuring that time is not wasted setting up various parameters.

Events are signalled as they occur via a graphical display and high brightness LEDs positioned around the perimeter of the display. The unit logs the time and date of up to 99 events. Logged events can be viewed locally on the display or transmitted remotely.

For more information about the series of Magnetic pig detectors (as below) please contact TEN sales representative;

• 4001D MAGSIG Series
• 4000SD Subsea Series
• 4003D MAGSIG UL CSA Certified

4001D MAGSIG Non-Intrusive Signaller

The 4001D MAGSIG is suitable for pipelines of any size. It is both ATEX and IECEx certified. The 4001D MAGSIG quickly and accurately detects, signals and logs the passage of magnetic pigs at critical points along a pipeline, both onshore and offshore.

4000SD Non-Intrusive Signaller

The 4000SD non-intrusive signaller is a compact, self contained, magnetic pig signaller which is suitable for harsh subsea applications and has an operating depth of 3,000m.

Features and benefits:

• Removes uncertainty of pig passage
• Quick and easy set up
• Versatile
• Acoustic link option allowing vessel to “listen”
for pig receipt from launch site
• Time and cost saving
• Up to 99 logged events
• Graphical display and high brightness LED
• Events can be viewed locally and reviewed later
• Single control button and intuitive menu system

ULTRASONIC

The range of non-intrusive, ATEX rated ultrasonic signallers detect, signal and log the passage of any pipeline pigs, onshore and offshore, without the need for magnets or transmitters.

In addition, in liquid pipelines, the exact location of any pig can be established, allowing for verification that the pig has cleared all valves and can be recovered.

For more information about the series of Ultrasonic pig detectors (as below) please contact TEN sales representative;

• ID5000A Topside Series
• ID5000P Topside Series
• ID5002P Exia Topside Series

Features and benefits:

• Time and cost savings
• Removes any uncertainty over confirmation of pig passage and location
• Quick and easy installation
• Minimal set up required
• ATEX certified
• Up to 100 logged events
• Main housing can be mounted remotely up to 10 metres from sensor for use on buried pipelines or where access is limited

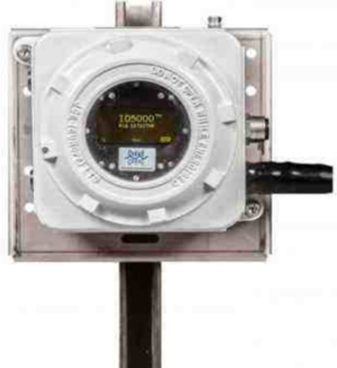

ID5000A™

The ID5000 Active Non-Intrusive Signaller signals the passage of pigs in liquid pipelines without the need for magnets or transmitters. This occurs when the ultrasonic “sound beam” being created and injected through the pipe wall of the line by the signaller is broken. In addition to pig signalling, the ID5000A™ can be used to confirm the location of pigs in the receiver, providing assurance they have passed any isolation valves. The unit can also provide a profile of debris or wax found within the pipeline. This allows operators to gauge for any cleaning requirements or assess the level of debris in front of the pig to be removed.

ID5000A™

The ID5000 Passive Non-Intrusive Signaller signals the passage of pigs in any medium without the need for magnets or transmitters. The ID5000P™ monitors the acoustic emissions created by the vibration and acoustic noise generated as a pig moves through the pipeline. The unit then processes the emissions to identify the signature of a pig.

The ID5000P™ is ATEX & IECEx certified

Read More
Show Less

MAGNETIC NON-INTRUSIVE SIGNALLER

4001D MAGSIG®

ULTRASONIC NON-INTRUSIVE SIGNALLER

ID5000A™
4000SD Subsea
ID5000P™
4003D MAGSIG®
ID5002P Topside

Datalogging & Testing

The datalogging & testing equipment records and communicates data remotely at various stages of the pipeline precommissioning process in order to free up the support vessel to perform other tasks, leading to significant cost savings.

The Gauging Run Integrity Data system allows the operator to confirm a newly laid pipeline is free from defects prior to a hydrotest.

Throughout the hydrotest, the 6000SD monitors, records and reports pressure and temperature data freeing up the onsite vessel to undertake other operations.

Following the hydrotest of a gas pipeline, the line must be chemically conditioned in preparation for transportation of product. The MEG ARTS® system provides highly accurate information on the composition of MEG and other chemicals received subsea during this conditioning stage.

6000SD
The 6000SD can be deployed during the hydrostatic test of a subsea pipeline to monitor, display and record pressure and temperature data at set intervals. The display can be monitored for any changes by an ROV or diver or changes can be communicated remotely. Once the test is complete, the log can be downloaded and presented to the client as supporting evidence of the result of the hydrotest.
GAUGING RUN INTEGRITY DATA (GRID)
GRID® system (Gauging Run Integrity Data) allows the presence and position of defects along a subsea pipeline to be identified. This is achieved by running a pig fitted with a GRID® transducer and gauge plate through the line. The transducer monitors the condition of the gauge plate and reports condition remotely by transmitting coded acoustic pulses at ranges of up to 1km. Once decoded using Online’s Audioscope software, the location of any defects can be determined. Optional Automatic Resetting Gauging Fingers (ARGF) allow multiple defects to be detected and logged on a gauging run.
MEG ARTS

MEG ARTS® is specifically designed for pre-commissioning of pipelines where lines require chemical conditioning in preparation for transportation of gas.The system measures the density of Mono-ethylene glycol or other chemicals in real time at the pipeline end termination for conformity with project specific requirements. Density, pressure and temperature data is displayed and logged for later analysis.

Up to 6 samples can be captured from the conditioning train for laboratory analysis and further validation of logged data if required.

With MEG ARTS® Online has addressed the challenge of cost-effectively and accurately confirming successful conditioning of gas pipelines in real time.

VOLTAGE GRADIENT PROBE
The Voltage Gradient Probe (VGP) is a robust, hand held, subsea unit designed to give an easy to interpret indication of AC voltage gradients in sea water.
ROV SWITCH
The ROV switch is a robust, subsea, rotary switch which can be rotated indefinitely in either direction by a diver or ROV manipulator without having to bring the equipment back to the surface.

Pig Signalling System

Lost or stuck pigs can result in extensive down time and significant additional expense. For this reason, pigs are frequently monitored during launch and receipt and when passing points in a pipeline that are deemed to pose a risk such as a valve, river crossing or other feature. This could be the case for all sizes and locations of pipelines regardless of whether managing a pipeline onshore or subsea, a buried pipeline, pipelines of varying wall thickness or a pipeline with geometric or operational challenges.

It may also be necessary to monitor pig passage from a remote location and as such effective data communication is vital.

SCRAPER PASSAGE INDICATOR

The Scraper Passage Indicators (SPI) or Pig Signallers are installed into the launcher and receiver units to confirm the launch or arrival of a pig. They can also be installed at any point along the pipeline to indicate that the pig has passed a specific point or pipeline feature.

Local Flag Indicators, which can be manually reset, or Electronic Sensors for remote indication of pig passage can be specified. Modern design uses magnetic interaction to initiate sensor actuation, minimising complexity and maximising reliability, safety and ease of use. Designed to retrofit to existing installations, IK-UK SPI unites offer quality, safety and the highest product standards.

Features and Benefits:

• Signallers can be mounted horizontally, vertically and on inclined applications
• OMNI-directional trigger.
• Pressure range up to ANSI 1500
• Conformity to NACE MR-01-75
• Magnetically actuated.
• Low maintenance.
• Can be installed on pipelines 2” and above
• Available as boss or flange mounted.
• Can be supplied with ball valve for removal under pressure.
• Can be retro-fitted to existing signaller bosses.
• Non-standard sizes available – please request information
• Customer Specific Materials of Construction for special applications are available
• No special tools required for installation
• Easy to install and remove
• Self-locating capability
• Adjustment for actual field dimension error with the provision of Adjustable Trigger Assembly
• Suitable for use with most test mediums
• Can be used in a range of pipe schedules

TRCU certifications

• Custom Flags, Colours, Testing and Data packets quoted upon request.

Hydrostatic test certificates supplied with each unit.

Read More
Show Less

Pipeline Geometry and Data Acquisition Services

Thirran Energy (TEN) collaborate with a reputable Principal that provides pipeline geometry and data acquisition services across all stages of a pipeline life cycle from construction right through to decommissioning and abandonment.

TEN work in partnership to support a broad base of pipeline cleaning, inspection, flow assurance
and integrity services, working with a wide range of international pipeline operators and pipeline integrity service providers. The full range of services includes pipeline proving, geometry surveys, pipeline data logging, debris mapping and assessment.
The Pathfinder was specifically designed for initial pipeline proving in lines with no pigging history and/or potential C113reductions in bore due to debris build up where an operator plans to initiate a pipeline pigging or ILI campaign. The Pathfinder has established a growing track record as a low risk, cost effective and innovative technology solution for measuring pipeline geometry, internal bore, detecting and measuring dents, ovality, buckles, wrinkles and the presence of debris/pipe wall deposits.

PATHFINDER FOAM CALIPER PROVING

The Pathfinder® Foam Caliper Tool is a pipeline inspection device with a high level of mechanical compliance, which is capable of negotiating severe
restrictions in a pipeline with minimal risk of blockage or damage.
Pathfinder has been developed for the first stage assessment of operational pipelines prior to the use of metal-bodied pigs. It can be used in conjunction with standard foam cleaning pigs to prove the bore of pipelines with unknown internal conditions, including:

• New and operational pipelines which have not previously been pigged
• Operational pipelines which have suffered damage due to external interference but are inaccessible for external inspection
• Operational pipelines with unknown levels and distributions of wax or scale deposits.

Information from the tool is used to identify the location and the size of localised bore restrictions in the line, allowing informed decisions to be made on the appropriate types and configurations of pigs to be deployed to clean or gauge the line.

Key Features and Typical Applications:

The Pathfinder comprises a medium density polyurethane foam pig with a removable cartridge containing sensors, electronics and batteries located in the centre of the pig. Sensors measure the compression of the foam at points around the circumference of the tool, allowing the tool to identify and measure bore changes, dents, ovality, scale and wax deposits and other restrictions in the line. Other sensors measure the roll (clock position), tilt and heading orientation of the pig.

An onboard logging system (with real-time clock) collects and stores data from the sensors, allowing pipeline features and anomalies recorded in the data to be referenced to pressure and flow records. For pig sizes 8” and greater an electromagnetic transmitter can be included for tracking and operation of Pig Signalers.

The Pathfinder is currently available from 4” up to 30” nominal size. With a maximum operating temperature of 70°C and a pressure of 400bar it can be used in wide range of applications and demanding environments. Designed to be mechanically simple, easy to handle and easy to use, the Pathfinder does not require specialised technicians infield and can often be used by client personnel.

Typical applications for Pathfinder include:

• Pipeline proving and bore measurement in pipelines with little or no pigging history.
• Locate & size bore anomalies such as restrictions, dents, partially closed valves.
• Pipeline debris measurement and assessment.
• Prior to a cleaning campaign to qualify existing debris volume.
• Used during the campaign to confirm pig performance and cleaning progress.
• Used at the end, to confirm cleanliness level.
• Go/no gauge for ILI and or other technologies.
• Pathfinder can be run periodically to trend and monitor the performance of long term operational cleaning strategies.

Read More
Show Less

Polyurethane Products for Subsea, Umbilical, Flowlines and Risers

Thirran Energy (TEN) also supplies Polyurethane Products for subsea, umbilical, flowlines and risers.

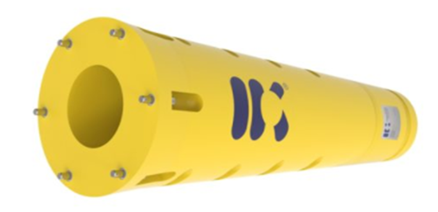

Bend Strain Relievers (Bend Stiffeners)

Provides protection against over bending during installation and operation. The purpose is to provide strength and to control the minimum bend radius of the cable or umbilical.

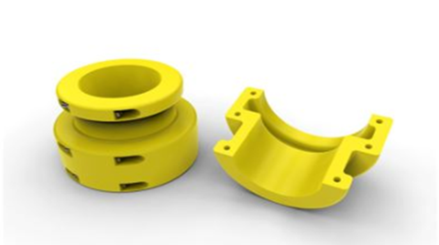

Bend Restrictors

Bend restrictors are light weight components, which are designed to limit the bend radius and physical damage of cables, umbilical’s and flowlines during installation and the service life. The bend restrictor is easy to install and is a high performance tool.

Passive J-Tube Seals

Passive J-Tube Seals are used to provide sealing and corrosion protection during offshore installations.

Piggy Back Clamps

Piggy back clamps are used where cables or pipelines require support when attached to the main pipeline. The clamp is made from two polyurethane saddles. The Piggy Back Clamps are durable, corrosion resistant and suitable for long term use. The system improves installation efficiency, which results in cost savings.

Pig Signalling System

Repair and Sealing Clamps

TEN jointly collaborate with Principal to design and deliver customized clamps for repair and sealing of structures, risers and pipelines. The clamps can be designed and engineered for a large variety of dimensions and load situations.

Types of Clamps and Typical Applications:

  • Caisson clamps
  • Conductor clamps
  • Remotely operated clamps
  • Structural clamps
  • Pipeline clamps
  • Structural sealing clamps
  • Buckle reinforcement clamps
